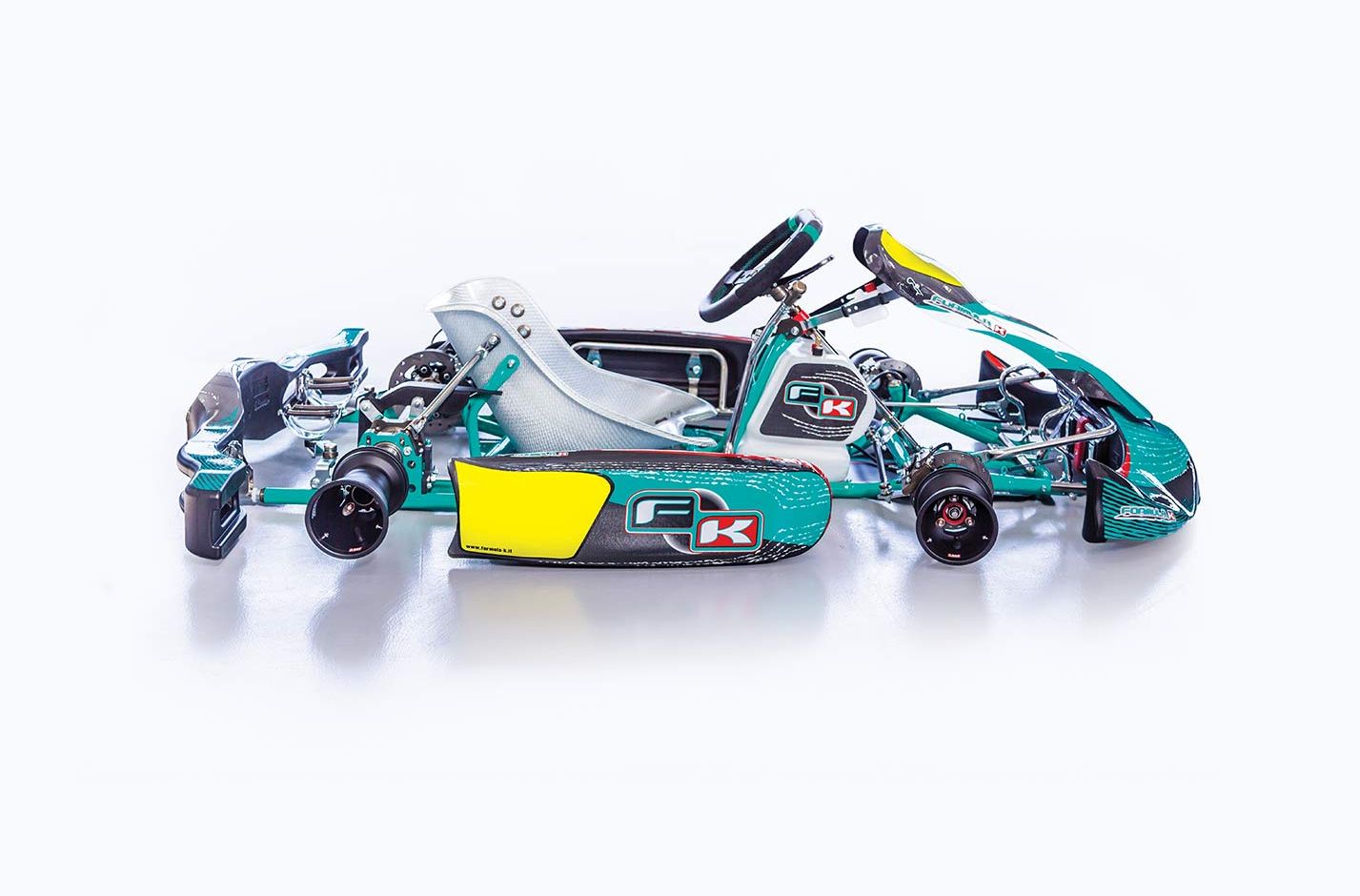

EVO 32

The top product for champions

EVO 32 completes the range of the “top line” high performance chassis.


Chassis that makes the difference

Different solution for different categories

Satisfy the needs of every driver is our goal. So we have created 4 different models of the Formula K EVO 32: KFJ/ROTAX JUNIOR – KF/ROTAX SENIOR – ROTAX DD2 – KZ1 – KZ2

Main features

Ø30 mm
tubular frame

Ø25 mm MOD. “R”
spindle

8.5 litre
fuel tank

Ø50x2x1030 mm
axle


Technical specifications

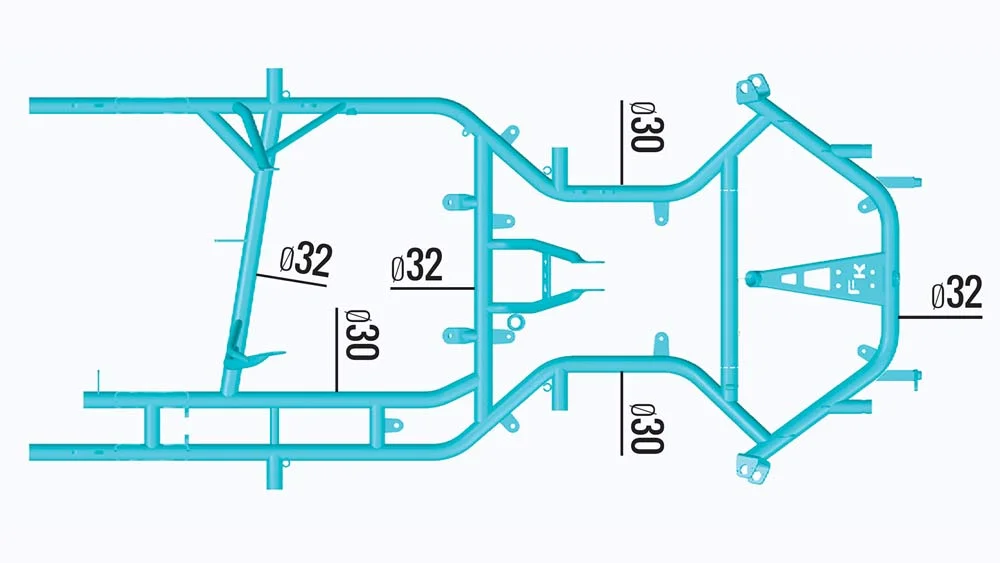

  • Ø30 – Ø32 mm tubular frame made of high-strenght steel
  • BURU – DUO EVO top line model with CIK-FIA homologated supports
  • Hydraulic system, pump with oil recovery tank, iron cast brake disc.
  • Top line steering system with Ø330 mm “Race One” steering wheel
  • Magnesium Ø5 inches 132 mm (front) – 212 mm (rear)
  • Fuel Tank: 8.5 litre
  • Seat: “Racing”, sizes: 1 | 1+ | 2 | 3 | 4
  • Axle: Ø50x2x1030 mm
    S | MS | M | MH | H | EH | X | RGF
  • Spindles: Ø25 mm with Ø10 kingpins and Camber – Caster regulation system
  • Weight
    STR configuration – 54 Kg
    RBS configuration – 50 Kg
    FMB configuration – 52 Kg
