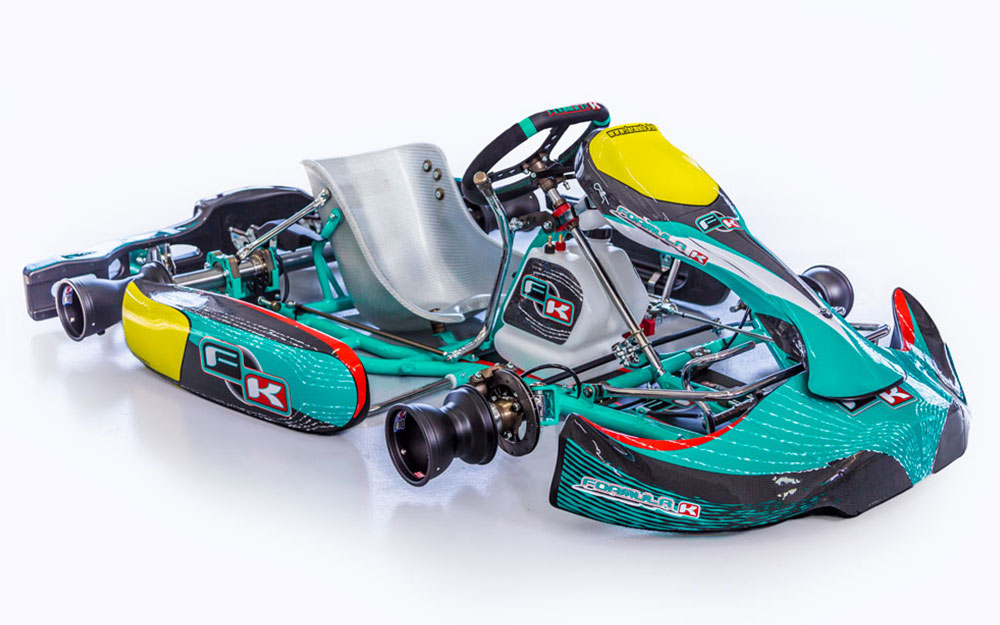

EVO 30

The top product of the Formula K range

The EVO 30 is the result of the experience gained on race tracks all over the world.


Different solutions making the difference

Satisfy the needs of every driver is our goal. So we have created 4 different models of the Formula K EVO 30: KZ1/KZ2, KFJ/KF, ROTAX, ROTAX MAX DD2

Main features

Ø30 mm
tubular frame

Ø25 mm MOD. “R”
spindle

8.5 litre
fuel tank

Ø50x2x1030 mm
axle

Technical specifications

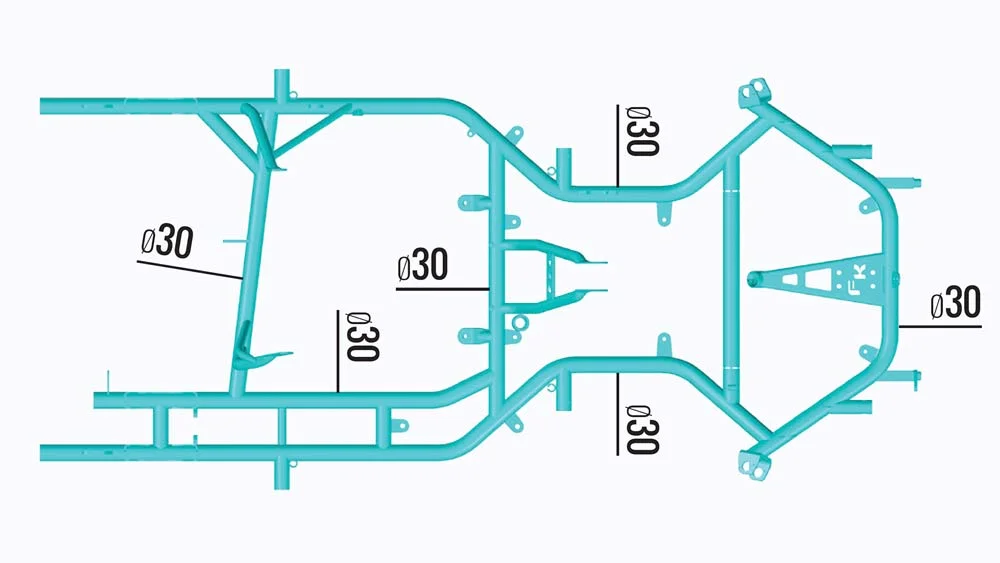

  • Ø30 mm tubular frame made of high-strenght steel
  • BURO – DUO EVO top line model with CIK-FIA homologated supports
  • Hydraulic system, pump with oil recovery tank, iron cast brake disc.
  • Top line steering system with Ø330 mm “Race One” steering wheel
  • Magnesium Ø5 inches, 132 mm (front) – 212 mm (rear)
  • 8.5 litre fuel tank
  • Seat: “Racing”, sizes: 1 | 1+ | 2 | 3 | 4
  • Axle: Ø50x2x1030 mm – S | MS | M | MH | H | EH | X | RGF
  • Spindles: Ø25 mm with Ø10 kingpins and Camber – Caster regulation system
  • Weight
    STR configuration – 54 Kg
    RBS configuration – 50 Kg
    FMB configuration – 52 Kg

Dimensions

WheelbaseSTD | 1050 mm
DD2 | 1050 mm
MINIMAX | 1010 mm

WeightRBS: 50 kg
FMB: 52 kg
STR: 54 kg
